Drives, paths and landscaping

10.2

10.2.6Drives, paths and landscaping

Appropriate access (including private roads, shared private drives, private drives, car parking and paths) shall be provided to and around the home. Issues to be taken into account include:

  1. general construction considerations
  2. drainage
  3. construction details
  4. minimum sub-base thickness
  5. house paths and patios.

Homes should be provided with suitable access through the provision of private roads, shared private drives, private drives, car parking areas and paths, as appropriate.

General construction considerations

Private roads, shared private drives, private drives, car parking areas and paths should comply with relevant building regulations. Where abutting the home, they should be at least 150mm below the DPC, and laid to falls away from the home (unless a channel or other suitable means of collection and disposal is provided).

All vegetable matter should be removed from the area of the proposed works.

Only suitable fill material comprising clean, well-consolidated crushed rock, hardcore, slag or concrete should be used to make up levels.

Sub-bases should be mechanically consolidated in layers not exceeding 225mm.

Finished ground levels should be compatible with:

  • DPC levels
  • cover levels of drainage access points
  • depth of underground services (gas, electricity, water and drains)
  • adjacent surfaces.

Private roads, shared private drives and private drives should:

  • be appropriate for the loads
  • provide reasonable access to and from a garage or car parking area
  • have a maximum gradient of 1:6
  • where the gradient is more than 1:10 and the gradient changes, have suitable transition lengths to reduce the risk of vehicles grounding.

Underground drainage or services that are below a private road, shared private drive, private drive, car parking area, path or patio should be protected against damage, as described in Chapter 5.3 ‘Drainage below ground’.

Edge restraint or kerbing should have a profile and foundation, which is suitable to form a permanent supporting edge for the expected vehicle loads on the road or drive.

Pedestrian access should be provided via a path within the curtilage of each home to the main entrance and the secondary entrance where present:

  • Where entry to the home can be gained directly from a garage, a path to a secondary access door is not required.
  • Where the secondary entrance is to a mid-terrace home or ground floor flat, a path to a secondary access door is not required.
  • Where a garage, carport or car parking area is provided within the curtilage, a path should be provided to it from the home.

Where appropriate, a drive can be regarded as a path for the provision of access.

Paths should have a maximum slope of 1:6. On steeper sloping ground, steps may be required.

Table 1: Suitable path widths

Location and useMinimum width of hard standing (mm)Minimum overall width (mm)
Within curtilage to main entrance, or any entrance designated by Building Regulations.900900
Paths used for the removal of refuse to the collection point.750900
Paths adjoining a home (with hard standing 100mm or more from the wall of the home).450700
All other cases.450600

Drainage

Private roads, shared private drives and private drives should have adequate rainwater drainage and disposal.

Paved areas should:

  • have vertical alignment, finished levels, transition arrangements and gradients in accordance with the design
  • have surfaces with adequate falls, cross-falls and drainage to ensure that surface water is suitably drained
  • have sub-base levels with the same longitudinal gradient and cross-fall as the finished level
  • have surfaces not flatter than 1:40 or have a camber of 1:40 where no fall is available to avoid ‘flat spots’
  • have surfaces with a minimum finished fall of 1:80 where they form private drives and paths
  • drain away from the home (and garage), or drain to a channel or other suitable means of collection and disposal adjacent to the home
  • not drain surface water from private areas onto adopted areas
  • not be within 2m of a soakaway.

Where paving slabs are laid abutting drainage channels and gully grates, etc., the upper surface of the paving slab should be set approximately 5mm above the grating.

Where it is intended to use porous or permeable surfaces as part, or all, of the rainwater drainage system, reference should be made to CIRIA report C522 – Sustainable urban drainage systems design manual for England and Wales.

Construction details

The construction of private roads, shared private drives, private drives and car parking areas should be constructed in accordance with the tables below, or an equivalent alternative.

Table 2a: Private road having frequent use by commercial vehicles

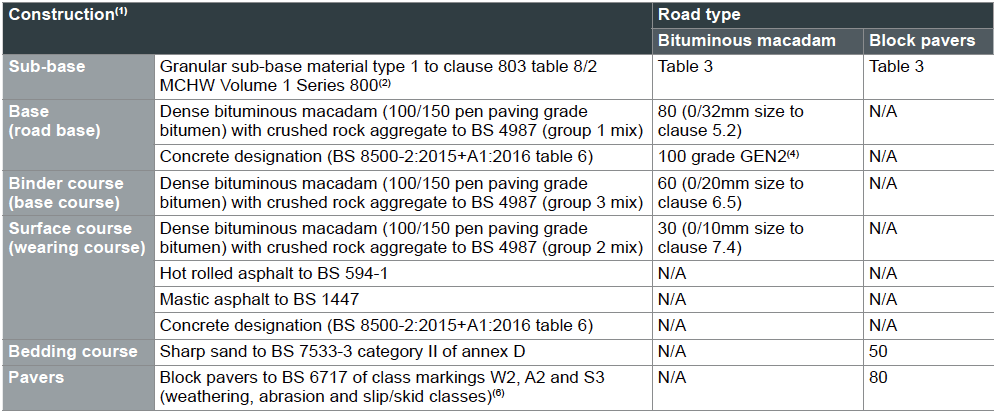

Table 2b: Shared parking and associated access areas having frequent use by commercial vehicles

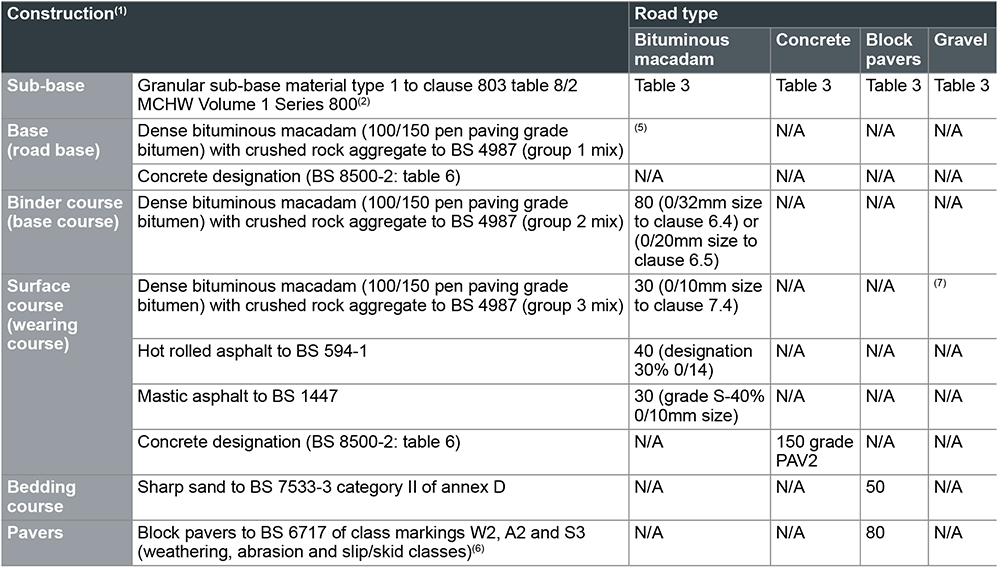

Table 2c: Shared drives having infrequent use by commercial vehicles

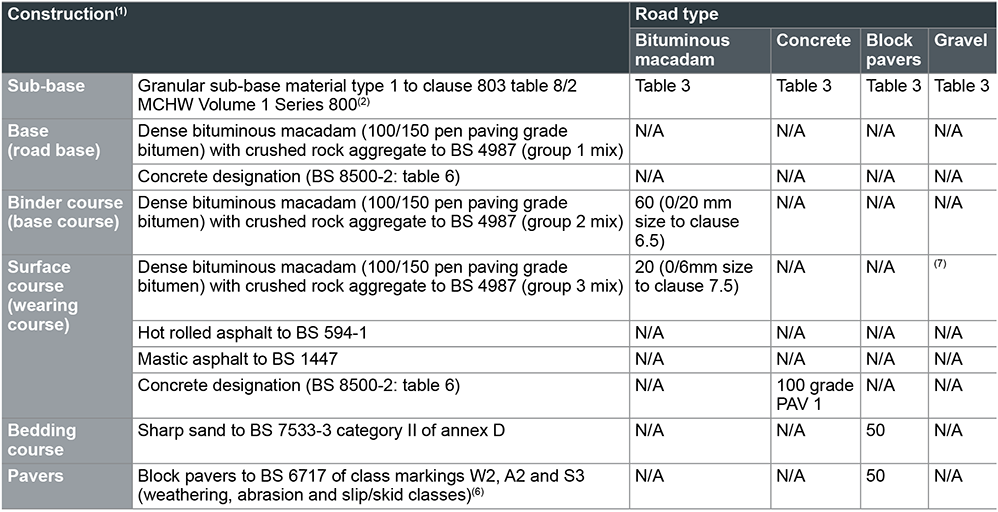

Table 2d: Private drives and parking areas having use by cars and light vehicles

Notes

1 In the first column, European harmonised names are used and UK names are in brackets.
2 Where a capping layer is specified, sub-base thickness can be reduced. DMRB Volume 7 Section 2 Part 2 HD 25/95 Foundations Chapter 3 Capping and Sub-base gives guidance on capping and sub-base thickness design based on CBR values with and without a capping layer.
3 Thickness is based on the provision of a geotextile membrane underneath the sub-base. Where no geotextile membrane is provided, see Table 3.
4 Bond and tack coat should be provided for bituminous mixtures in accordance with BS 4987-2 or BS 594-2.
5 Asphalt-based materials can be used as a partial replacement of a full thickness granular sub-base type 1 material.
6 Where laid to either a 90 or 45 degree herringbone pattern, the edge perimeter should be laid with one single row of stretcher bond set parallel to the edge restraint. Where block pavers are laid abutting drainage channels, gulley grates, etc. the upper surface of the block pavers should be set 3-6mm above the grating. Manufacturer’s declared value markings W3 and S4 are acceptable. Where W3 is 1.0kg/m2 or less and S4 is 45 or more based on ‘C scale unit’ (for abrasion, class A2 = maximum result is 23mm, class A1 = no performance determined).
7 A 38mm thickness of graded 15/20mm unbound aggregate to BS EN 13242 (gravel), well rolled and compacted, should be used.
8 Thicknesses are in mm.
9 Reference to clauses are in relation to the relevant British Standards.

Minimum sub-base thickness

The thickness of any required capping layer and the sub-base should be determined after investigations and on-site tests have been carried out, with consideration to the:

  • CBR value
  • frost susceptibility of the sub-grade; where susceptible to frost, a suitable capping layer should be included below the sub-base to a depth to ensure that construction will not be affected by frost heave.

Table 3: Minimum sub-base thickness for paved areas

House paths and patios

Paths and patios should be supported on a suitable sub-base such as 100mm thickness of clean, well consolidated crushed rock, hardcore (maximum size 75mm), slag or concrete, and laid on 25mm of sand blinding or 1:4 cement:sand mortar.

Concrete paths and patios should be not less than 75mm thick and have a tamped or textured finish. The concrete mix should be suitable to give a durable and frost resistant surface, as described in Chapter 3.1 ‘Concrete and its reinforcement’. Movement joints, not less than 10mm wide, should be provided across the full width of the path at not more than 4m centres. A movement joint is not required at the abutment with a wall unless the opposite edge of the concrete is also restrained.
